Profile standards affect far more than the numbers printed on a drawing. Dimensional standards can differ in profile dimensions, hardware, tooling, accessory fit, and the way utilities integrate with the frame. Understanding those details helps manufacturers avoid mixing parts that look similar but do not assemble the same way.
Availability of Metric Profile Line Dimensions over Inch Sizes

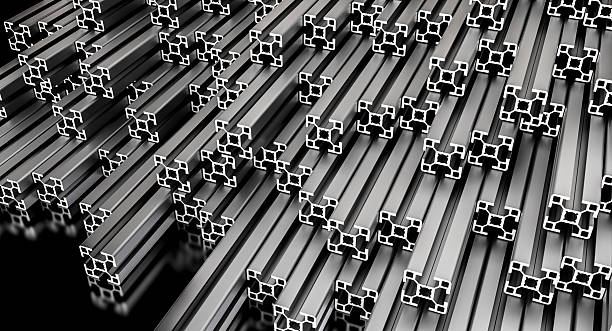

Available metric profile families often give designers a broader range of standardized cross sections for machinery, guards, workstations, and conveyor supports. The MiniTec Aluminum Framing system uses metric dimensions that make it easier to match rails with other metric equipment already common in industrial settings. Designers can select aluminum framing material by height, width, wall shape, and load requirement instead of converting every measurement from an inch-based drawing. That consistency also helps when replacement parts come from international equipment suppliers. Millimeter-based sizing can simplify CAD work, spare-part records, and machine documentation when the surrounding plant already follows millimeter dimensions. By contrast, inch-based systems keep dimensions and shop hardware in fractional sizes, which can be convenient in plants already standardized around imperial tooling, drawings, and spare parts locally.
Standard Integration with Power-lock Fastener Hardware
Power-lock hardware gives MiniTec extruded aluminum framing a connection method designed around the profile system rather than a generic bolt pattern. Such hardware works with the slot geometry to join profiles without relying on welded tabs or large external plates. Installers can build right-angle connections while keeping much of the profile face open for panels, sensors, or other accessories.
Unlike hardware adapted from another dimensional standard, system-matched fasteners reduce questions about fit. Properly paired components help the T slot extrusion stay aligned and allow connections to be loosened if the frame needs adjustment later. This becomes useful on modular equipment where rails may move after the machine reaches the production floor.
Compatibility with Allen Wrench Assembly Tooling
Simple hand tools are one reason modular framing assembles quickly. Matching metric fasteners used with an aluminum framing kit can be tightened with matching Allen wrenches, making field assembly easier for technicians who already use metric tooling. Crews avoid switching between fractional and metric hex sizes while working across one structure. Tooling consistency also matters during large builds with dozens of brackets and connectors because using the wrong wrench can round a socket head or slow installation. Standardized tooling also makes maintenance kits easier to prepare for equipment that may be serviced in different locations.
Ability to Route Pressurized Pneumatic Air Through Specific Metric Core Profiles
Certain profile designs can do more than carry structural loads. Selected metric profiles may include internal cavities that can support pneumatic routing when the profile and fittings are specifically intended for that purpose. Using the frame as part of the air-distribution layout can reduce exposed tubing along machinery and create cleaner runs between valves, cylinders, and other pneumatic devices.
Careful engineering still matters before pressure enters any T slot aluminum extrusion component. Only profiles, seals, fittings, and pressure levels approved for that use should be selected. Mixing a standard hollow rail with pneumatic service simply because it contains an internal cavity can create leaks or unsafe conditions.
Integrated Metric Cable Management Tracking Systems
Cable management fits naturally into metric framing because brackets, clips, covers, and tracks can share the same dimensional system. Electrical lines, sensor wiring, and communication cables can follow the frame instead of hanging loosely around equipment. Organized routing keeps wires away from moving parts and gives technicians a clearer path to follow during troubleshooting. Compatible accessories can also attach to the extruded aluminum T slot without drilling new holes in the main rail. Clean cable paths become especially useful on inspection stations, conveyors, and automated cells that collect more wiring as controls are added.
Inclusion of Metric Fasteners with Standard Modular Framing Packages
Matched hardware reduces one of the easiest assembly mistakes to make: pairing a profile with a nut or bolt that almost fits. Preconfigured metric framing packages can include fasteners selected for the intended slot size, bracket, and thread pattern. Builders spend less time sorting through mixed hardware and have fewer reasons to substitute shop-stock parts.
Consistent fasteners also simplify future repairs. Maintenance teams can keep known metric sizes on hand and replace worn components without guessing which inch equivalent might work. For repeat equipment builds, that consistency can make purchasing, inventory, and training more straightforward.
Unique Safety-yellow Color Availability for Specific 45 X 45 Ul Metric Shapes
Color can add function when a profile forms part of a machine guard, access boundary, or high-visibility area. Specific 45 x 45 UL metric profile options in safety yellow can help selected frame sections stand out without relying on separate painted steel members. Bright framing may make edges, openings, or protected zones easier to notice around active equipment. Surface color should still support the facility’s own safety standards rather than replace required signs or markings. MiniTec Solutions gives manufacturers access to metric MiniTec Aluminum Framing components suited to precise builds, organized utility runs, straightforward installation, and safety-focused machine layouts.
